| Specifications | Description |
|---|---|
| Eff. code | – |
| HP | 3 |
| kW | 2.2 |
| Volts | 380 |
| Frequency (Hz) | 50 |
| S.RPM | 1500 |
| Enclosure | TENV |
| Mounting | D-Flange Roundbody |
| Frame | 90L |
| Weight (kg) | 30 |
| FL.APMPS | 5.20 |
| FL.RPM | 1460 |
| TYPE | – |
| FORM | – |
| SF | 1 |
| DESIGN | – |
| Insul. Class | F |
| AMB (°C) | -40 |
| Duty | CONT. |
| Nom. Eff. | |
| PF | |
| Locked Rotor Amp. | 48 |
| Full Load (Nm) Torque | 14.388904109589 |
| Locked Rotor Torque | 410 |
| Break Down Torque | – |
| Drive End Bearing | AC6205ZZC3 |
| Opposite Drive End Bearing | AC6205ZZC3 |
| Full Load Eff. | – |
| 3/4 Load Eff. | – |
| 1/2 Load Eff. | – |
| Full Load PF | – |
| 3/4 Load PF | – |
| 1/2 Load PF | – |

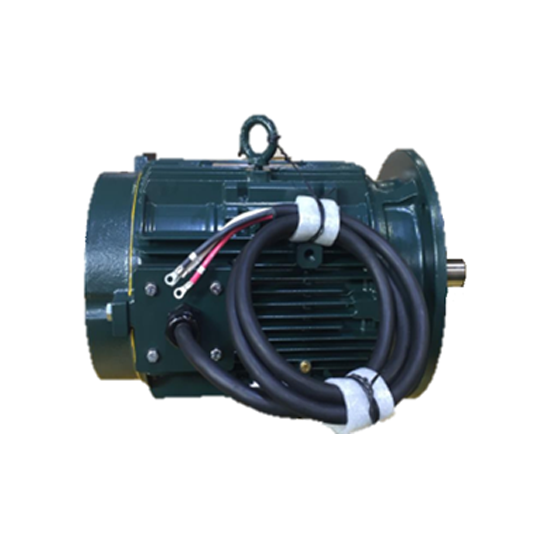

VY224FZMH7JS
4P-2.2kW-380V-FZ-B5-EPX
Áp dụng cho hệ thống hầm đông lạnh, …
Standard
IEC
Group
DEFINITE PURPOSE MOTOR
Product
Frozen Motors
