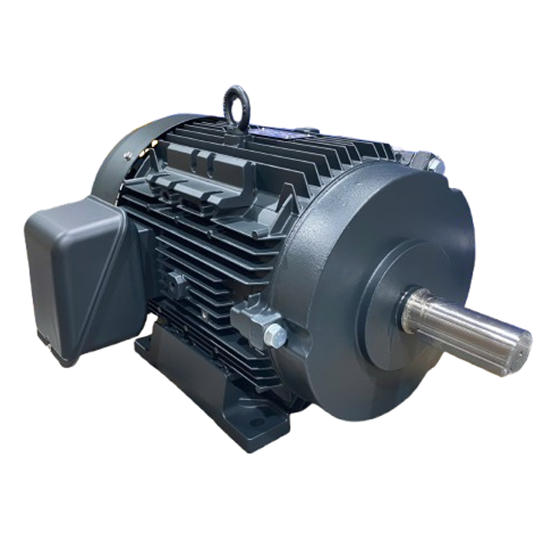

5022X453 - Toshiba

5022X453

6P-45kW-200/400V-IN

Động cơ được sử dụng trong nhiều loại thiết bị công nghiệp, bao gồm quạt, máy bơm và máy nén.

Standard
JIS C 4213 : 2014
Group
GENERAL PURPOSE MOTOR
Product
Premium Gold Motor (Frame size 225 and smaller)
Specifications Description
Eff. code IE3
HP –
kW 45
Volts 200/400/200/400/220/440/230/460
Frequency (Hz) 50/50/60/60/60/60/60/60
S.RPM 1000/1000/1200/1200/1200/1200/1200/1200
Enclosure TEFC
Mounting Footed
Frame 225S
Weight (kg) 410
FL.APMPS 176/88.0/168/84.0/156/78.0/152/76.0
FL.RPM 985/985/1175/1175/1180/1180/1185/1185
TYPE TKKH3
FORM FBK21E
SF 1
DESIGN –
Insul. Class F
AMB (°C) 40
Duty S1
Nom. Eff. 93.7/93.7/94.5/94.5/94.5/94.5/94.5/94.5
PF 80.5/80.5/84.5/84.5/82.0/82.0/79.5/79.5
Locked Rotor Amp. 1300.0/650.0/1144.0/572.0/1258.0/629.0/1316.0/658.0
Full Load (Nm) Torque 436.24/436.24/365.70/365.70/364.15/364.15/362.62/362.62
Locked Rotor Torque 273/273/217/217/263/263/287/287
Break Down Torque 396/396/290/290/351/351/384/384
Drive End Bearing 6315ZZC3
Opposite Drive End Bearing 6312ZZC3
Full Load Eff. 94.3/94.3/94.5/94.5/95.0/95.0/95.1/95.1
3/4 Load Eff. –
1/2 Load Eff. –
Full Load PF 80.6/80.6/84.7/84.7/82.0/82.0/79.8/79.8
3/4 Load PF –
1/2 Load PF –
