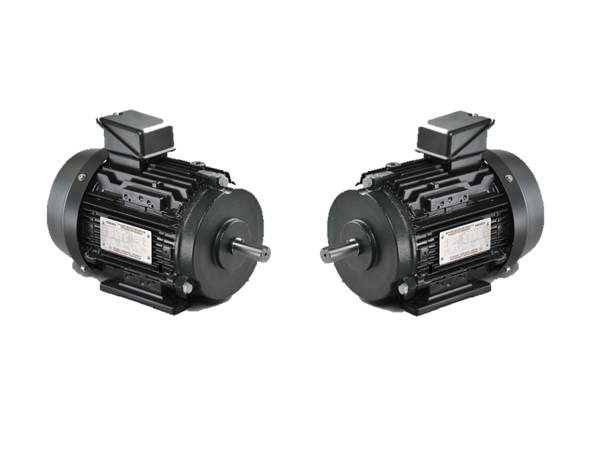

Premium Gold Motor (Frame size 225 and smaller)

Động cơ PGM (kích thước khung 225 và nhỏ hơn) kết hợp công nghệ tích lũy qua nhiều năm với kỹ thuật thiết kế mới nhất, tối ưu hóa các bộ phận và làm cho sản phẩm nhẹ hơn. Động cơ được sử dụng trong nhiều loại thiết bị công nghiệp, bao gồm quạt, máy bơm và máy nén. Theo yêu cầu, động cơ có thể được tùy chỉnh sao cho phù hợp nhất với máy tải.
Premium Gold Motor (Frame size 225 and smaller) Archives - Toshiba
STT Mã sản phẩm Standard Eff. code Pole Voltage Output Power Hz Structure Frame
1 5062V037 JIS IE3 2 200/200/220/230 3.7 kW 50/60/60/60 Flange 112M
2 5022V037 JIS IE3 2 200/200/220/230 3.7 kW 50/60/60/60 Footed 112M
3 5042V037 JIS IE3 2 200/200/220/230 3.7 kW 50/60/60/60 Flange 112M
4 5062V022 JIS IE3 2 200/200/220/230 2.2 kW 50/60/60/60 Flange 90L
5 5022V022 JIS IE3 2 200/200/220/230 2.2 kW 50/60/60/60 Footed 90L
6 5042V022 JIS IE3 2 200/200/220/230 2.2 kW 50/60/60/60 Flange 90L
7 5062V015 JIS IE3 2 200/200/220/230 1.5 kW 50/60/60/60 Flange 90L
8 5022V015 JIS IE3 2 200/200/220/230 1.5 kW 50/60/60/60 Footed 90L
9 5042V015 JIS IE3 2 200/200/220/230 1.5 kW 50/60/60/60 Flange 90L
10 5062V007 JIS IE3 2 200/200/220/230 0.75 kW 50/60/60/60 Flange 80M
11 5042V007 JIS IE3 2 200/200/220/230 0.75 kW 50/60/60/60 Flange 80M
12 5022V007 JIS IE3 2 200/200/220/230 0.75 kW 50/60/60/60 Footed 80M
13 5042W007 JIS IE3 4 200/200/220/230 0.75 kW 50/60/60/60 Flange 80M
14 5022W007 JIS IE3 4 200/200/220/230 0.75 kW 50/60/60/60 Footed 80M
15 5022V553 JIS IE3 2 200/400/200/400/220/440/230/460 55 kW 50/50/60/60/60/60/60/60 Footed 225S
16 5022V453 JIS IE3 2 200/400/200/400/220/440/230/460 45 kW 50/50/60/60/60/60/60/60 Footed 200L
17 5022V370 JIS IE3 2 200/200/220/230 37 kW 50/60/60/60 Footed 200L
18 5022V300 JIS IE3 2 200/200/220/230 30 kW 50/60/60/60 Footed 180L
19 5022V220 JIS IE3 2 200/200/220/230 22 kW 50/60/60/60 Footed 180M
20 5022V185 JIS IE3 2 200/200/220/230 18.5 kW 50/60/60/60 Footed 160L
21 5062V150 JIS IE3 2 200/200/220/230 15 kW 50/60/60/60 Flange 160M
22 5022V150 JIS IE3 2 200/200/220/230 15 kW 50/60/60/60 Footed 160M
23 5042V150 JIS IE3 2 200/200/220/230 15 kW 50/60/60/60 Flange 160M
24 5062V110 JIS IE3 2 200/200/220/230 11 kW 50/60/60/60 Flange 160M
25 5022V110 JIS IE3 2 200/200/220/230 11 kW 50/60/60/60 Footed 160M
26 5042V110 JIS IE3 2 200/200/220/230 11 kW 50/60/60/60 Flange 160M
27 5062V075 JIS IE3 2 200/200/220/230 7.5 kW 50/60/60/60 Flange 132S
28 5022V075 JIS IE3 2 200/200/220/230 7.5 kW 50/60/60/60 Footed 132S
29 5042V075 JIS IE3 2 200/200/220/230 7.5 kW 50/60/60/60 Flange 132S
30 5062V055 JIS IE3 2 200/200/220/230 5.5 kW 50/60/60/60 Flange 132S
31 5022V055 JIS IE3 2 200/200/220/230 5.5 kW 50/60/60/60 Footed 132S
32 5042V055 JIS IE3 2 200/200/220/230 5.5 kW 50/60/60/60 Flange 132S
33 5062W075 JIS IE3 4 200/200/220/230 7.5 kW 50/60/60/60 Flange 132M
34 5022W075 JIS IE3 4 200/200/220/230 7.5 kW 50/60/60/60 Footed 132M
35 5042W075 JIS IE3 4 200/200/220/230 7.5 kW 50/60/60/60 Flange 132M
36 5062W055 JIS IE3 4 200/200/220/230 5.5 kW 50/60/60/60 Flange 132S
37 5022W055 JIS IE3 4 200/200/220/230 5.5 kW 50/60/60/60 Footed 132S
38 5042W055 JIS IE3 4 200/200/220/230 5.5 kW 50/60/60/60 Flange 132S
39 5062W037 JIS IE3 4 200/200/220/230 3.7 kW 50/60/60/60 Flange 112M
40 5022W037 JIS IE3 4 200/200/220/230 3.7 kW 50/60/60/60 Footed 112M
41 5042W037 JIS IE3 4 200/200/220/230 3.7 kW 50/60/60/60 Flange 112M
42 5062W022 JIS IE3 4 200/200/220/230 2.2 kW 50/60/60/60 Flange 100L
43 5022W022 JIS IE3 4 200/200/220/230 2.2 kW 50/60/60/60 Footed 100L
44 5042W022 JIS IE3 4 200/200/220/230 2.2 kW 50/60/60/60 Flange 100L
45 5062W015 JIS IE3 4 200/200/220/230 1.5 kW 50/60/60/60 Flange 90L
46 5022W015 JIS IE3 4 200/200/220/230 1.5 kW 50/60/60/60 Footed 90L
47 5042W015 JIS IE3 4 200/200/220/230 1.5 kW 50/60/60/60 Flange 90L
48 5062W007 JIS IE3 4 200/200/220/230 0.75 kW 50/60/60/60 Flange 80M
49 5022W553 JIS IE3 4 200/400/200/400/220/440/230/460 55 kW 50/50/60/60/60/60/60/60 Footed 225S
50 5022W453 JIS IE3 4 200/400/200/400/220/440/230/460 45 kW 50/50/60/60/60/60/60/60 Footed 200L
51 5062W370 JIS IE3 4 200/200/220/230 37 kW 50/60/60/60 Flange 200L
52 5022W370 JIS IE3 4 200/200/220/230 37 kW 50/60/60/60 Footed 200L
53 5042W370 JIS IE3 4 200/200/220/230 37 kW 50/60/60/60 Flange 200L
54 5062W300 JIS IE3 4 200/200/220/230 30 kW 50/60/60/60 Flange 180L
55 5022W300 JIS IE3 4 200/200/220/230 30 kW 50/60/60/60 Footed 180L
56 5042W300 JIS IE3 4 200/200/220/230 30 kW 50/60/60/60 Flange 180L
57 5062W220 JIS IE3 4 200/200/220/230 22 kW 50/60/60/60 Flange 180M
58 5022W220 JIS IE3 4 200/200/220/230 22 kW 50/60/60/60 Footed 180M
59 5042W220 JIS IE3 4 200/200/220/230 22 kW 50/60/60/60 Flange 180M
60 5062W185 JIS IE3 4 200/200/220/230 18.5 kW 50/60/60/60 Flange 180M
61 5022W185 JIS IE3 4 200/200/220/230 18.5 kW 50/60/60/60 Footed 180M
62 5042W185 JIS IE3 4 200/200/220/230 18.5 kW 50/60/60/60 Flange 180M
63 5062W150 JIS IE3 4 200/200/220/230 15 kW 50/60/60/60 Flange 160L
64 5022W150 JIS IE3 4 200/200/220/230 15 kW 50/60/60/60 Footed 160L
65 5042W150 JIS IE3 4 200/200/220/230 15 kW 50/60/60/60 Flange 160L
66 5062W110 JIS IE3 4 200/200/220/230 11 kW 50/60/60/60 Flange 160M
67 5022W110 JIS IE3 4 200/200/220/230 11 kW 50/60/60/60 Footed 160M
68 5042W110 JIS IE3 4 200/200/220/230 11 kW 50/60/60/60 Flange 160M
69 5022X453 JIS IE3 6 200/400/200/400/220/440/230/460 45 kW 50/50/60/60/60/60/60/60 Footed 225S
70 5022X370 JIS IE3 6 200/200/220/230 37 kW 50/60/60/60 Footed 200L
71 5022X300 JIS IE3 6 200/200/220/230 30 kW 50/60/60/60 Footed 200L
72 5022X220 JIS IE3 6 200/200/220/230 22 kW 50/60/60/60 Footed 180L
73 5022X185 JIS IE3 6 200/200/220/230 18.5 kW 50/60/60/60 Footed 180L
74 5022X150 JIS IE3 6 200/200/220/230 15 kW 50/60/60/60 Footed 180M
75 5022X110 JIS IE3 6 200/200/220/230 11 kW 50/60/60/60 Footed 160L
76 5042X110 JIS IE3 6 200/200/220/230 11 kW 50/60/60/60 Flange 160L
77 5022X075 JIS IE3 6 200/200/220/230 7.5 kW 50/60/60/60 Footed 160M
78 5042X075 JIS IE3 6 200/200/220/230 7.5 kW 50/60/60/60 Flange 160M
79 5022X055 JIS IE3 6 200/200/220/230 5.5 kW 50/60/60/60 Footed 132M
80 5042X055 JIS IE3 6 200/200/220/230 5.5 kW 50/60/60/60 Flange 132M
81 5022X037 JIS IE3 6 200/200/220/230 3.7 kW 50/60/60/60 Footed 132S
82 5042X037 JIS IE3 6 200/200/220/230 3.7 kW 50/60/60/60 Flange 132S
83 5022X022 JIS IE3 6 200/200/220/230 2.2 kW 50/60/60/60 Footed 112M
84 5042X022 JIS IE3 6 200/200/220/230 2.2 kW 50/60/60/60 Flange 112M
85 5022X015 JIS IE3 6 200/200/220/230 1.5 kW 50/60/60/60 Footed 100L
86 5042X015 JIS IE3 6 200/200/220/230 1.5 kW 50/60/60/60 Flange 100L
87 5022X007 JIS IE3 6 200/200/220/230 0.75 kW 50/60/60/60 Footed 90L
88 5042X007 JIS IE3 6 200/200/220/230 0.75 kW 50/60/60/60 Flange 90L
