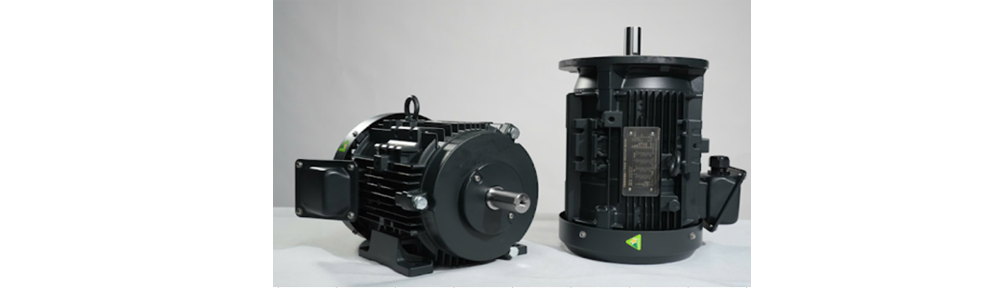

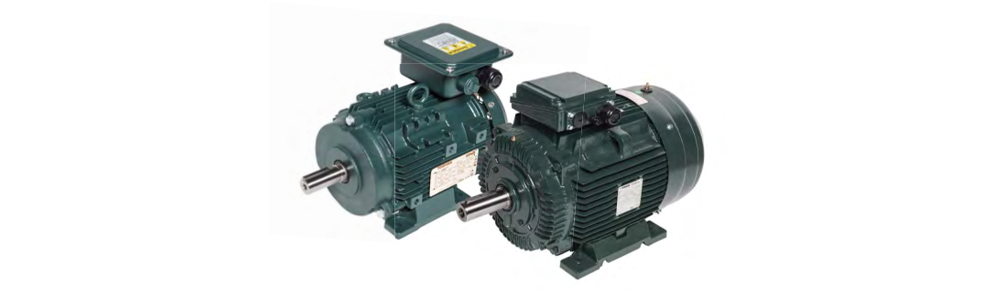

EQP Global IEC Motors (Frame size 80 to 225)

Tính năng tiêu chuẩn:
Làm mát bằng quạt hoàn toàn khép kín (IC411)
Chịu tải nặng
Hiệu suất IE3 theo IEC 60034-30
Đáp ứng hoặc vượt qua các thông số kỹ thuật tiêu chuẩn toàn cầunhư IEC 60034, 60072, 60204 và 60038
50 Hz: 230/400, 240/415, 220/380, or 400, 415, 380 V
60 Hz: 460 V
Motor 3 pha
Bảo vệ IP55 (Bảo vệ bằng V Ring)
Thiết kế tần số kép 50/60 Hz
Vỏ Nhôm - Frame 160 & nhỏ hơn
Vỏ Gang - Frame 160 & lớn hơn
Chân đế vỏ nhôm có thể tháo rời cho Frame 80 đến 180
Có sẵn các tùy chọn mặt bích có thể hoán đổi (B5/B35 và B14/34)
Có nhiều lỗ chân đế trên một số khung được chọn


Ứng dụng:
Bơm
Quạt
Máy nén khí
Băng tải
Máy móc công nghiệp khác
EQP Global IEC Motors (Frame size 80 to 225) Archives - Toshiba
EQP Global IEC Motors (Frame size 80 to 225) Archives - Toshiba
STT Mã sản phẩm Standard Eff. code Pole Voltage Output Power Hz Structure Frame
1 0182SDMW7GS-PL IEC IE3 2 400 25 HP/ 18.5 kW 50 D-Flange Footed 160L
2 0222SDMW7GS-P IEC IE3 2 400 30 HP/ 22 kW 50 D-Flange Footed 180M
3 0302SDMW7GS-P IEC IE3 2 400 40 HP/ 30 kW 50 D-Flange Footed 200L
4 0372SDMW7GS-P IEC IE3 2 400 50 HP/ 37 kW 50 D-Flange Footed 200L
5 0452SDMW7GS-P IEC IE3 2 400 60 HP/ 45 kW 50 D-Flange Footed 225S
6 0042SDMV7FS-PL IEC IE3 2 230/400 5.5 HP/ 4 kW 50 Footed 112M
7 Y552SDMV7FS-PL IEC IE3 2 230/400 7.5 HP/ 5.5 kW 50 Footed 132S
8 Y752SDMV7FS-PL IEC IE3 2 230/400 10 HP/ 7.5 kW 50 Footed 132M
9 0112SDMW7FS-PL IEC IE3 2 400 15 HP/ 11 kW 50 Footed 160M
10 0152SDMW7FS-PL IEC IE3 2 400 20 HP/ 15 kW 50 Footed 160M
11 0182SDMW7FS-PL IEC IE3 2 400 25 HP/ 18.5 kW 50 Footed 160L
12 0222SDMW7FS-P IEC IE3 2 400 30 HP/ 22 kW 50 Footed 180M
13 0302SDMW7FS-P IEC IE3 2 400 40 HP/ 30 kW 50 Footed 200L
14 0372SDMW7FS-P IEC IE3 2 400 50 HP/ 37 kW 50 Footed 200L
15 0452SDMW7FS-P IEC IE3 2 400 60 HP/ 45 kW 50 Footed 225S
16 X752SDMV7GS-P IEC IE3 2 230/400 1 HP/ 0.75 kW 50 D-Flange Footed 80M
17 Y112SDMV7GS-P IEC IE3 2 230/400 1.5 HP/ 1.1 kW 50 D-Flange Footed 80M
18 Y152SDMV7GS-PL IEC IE3 2 230/400 2 HP/ 1.5 kW 50 D-Flange Footed 90L
19 Y222SDMV7GS-PL IEC IE3 2 230/400 3 HP/ 2.2 kW 50 D-Flange Footed 90L
20 0032SDMV7GS-PL IEC IE3 2 230/400 4 HP/ 3 kW 50 D-Flange Footed 100L
21 0042SDMV7GS-PL IEC IE3 2 230/400 5.5 HP/ 4 kW 50 D-Flange Footed 112M
22 Y552SDMV7GS-PL IEC IE3 2 230/400 7.5 HP/ 5.5 kW 50 D-Flange Footed 132S
23 Y752SDMV7GS-PL IEC IE3 2 230/400 10 HP/ 7.5 kW 50 D-Flange Footed 132M
24 0112SDMW7GS-PL IEC IE3 2 400 15 HP/ 11 kW 50 D-Flange Footed 160M
25 0152SDMW7GS-PL IEC IE3 2 400 20 HP/ 15 kW 50 D-Flange Footed 160M
26 X752SDMV7FS-P IEC IE3 2 230/400 1 HP/ 0.75 kW 50 Footed 80M
27 Y112SDMV7FS-P IEC IE3 2 230/400 1.5 HP/ 1.1 kW 50 Footed 80M
28 Y152SDMV7FS-PL IEC IE3 2 230/400 2 HP/ 1.5 kW 50 Footed 90L
29 Y222SDMV7FS-PL IEC IE3 2 230/400 3 HP/ 2.2 kW 50 Footed 90L
30 0032SDMV7FS-PL IEC IE3 2 230/400 4 HP/ 3 kW 50 Footed 100L
31 Y224SDMV7GS-PL IEC IE3 4 230/400 3 HP/ 2.2 kW 50 D-Flange Footed 100L
32 Y554SDMV7GS-PL IEC IE3 4 230/400 7.5 HP/ 5.5 kW 50 D-Flange Footed 132S
33 0044SDMV7GS-PL IEC IE3 4 230/400 5.5 HP/ 4 kW 50 D-Flange Footed 112M
34 0034SDMV7GS-PL IEC IE3 4 230/400 4 HP/ 3 kW 50 D-Flange Footed 100L
35 Y154SDMV7GS-PL IEC IE3 4 230/400 2 HP/ 1.5 kW 50 D-Flange Footed 90L
36 Y114SDMV7GS-PL IEC IE3 4 230/400 1.5 HP/ 1.1 kW 50 D-Flange Footed 90L
37 X754SDMV7GS-P IEC IE3 4 230/400 1 HP/ 0.75 kW 50 D-Flange Footed 80M
38 0454SDMW7FS-P IEC IE3 4 400 60 HP/ 45 kW 50 Footed 225S
39 Y754SDMV7GS-PL IEC IE3 4 230/400 10 HP/ 7.5 kW 50 D-Flange Footed 132M
40 0114SDMW7GS-PL IEC IE3 4 400 15 HP/ 11 kW 50 D-Flange Footed 160M
41 0154SDMW7GS-PL IEC IE3 4 400 20 HP/ 15 kW 50 D-Flange Footed 160L
42 0454SDMW7GS-P IEC IE3 4 400 60 HP/ 45 kW 50 D-Flange Footed 225S
43 0374SDMW7GS-P IEC IE3 4 400 50 HP/ 37 kW 50 D-Flange Footed 225S
44 0304SDMW7GS-P IEC IE3 4 400 40 HP/ 30 kW 50 D-Flange Footed 200L
45 0224SDMW7GS-P IEC IE3 4 400 30 HP/ 22 kW 50 D-Flange Footed 180L
46 0184SDMW7GS-P IEC IE3 4 400 25 HP/ 18.5 kW 50 D-Flange Footed 180M
47 Y114SDMV7FS-PL IEC IE3 4 230/400 1.5 HP/ 1.1 kW 50 Footed 90L
48 X754SDMV7FS-P IEC IE3 4 230/400 1 HP/ 0.75 kW 50 Footed 80M
49 0374SDMW7FS-P IEC IE3 4 400 50 HP/ 37 kW 50 Footed 225S
50 Y154SDMV7FS-PL IEC IE3 4 230/400 2 HP/ 1.5 kW 50 Footed 90L
51 Y224SDMV7FS-PL IEC IE3 4 230/400 3 HP/ 2.2 kW 50 Footed 100L
52 0034SDMV7FS-PL IEC IE3 4 230/400 4 HP/ 3 kW 50 Footed 100L
53 0304SDMW7FS-P IEC IE3 4 400 40 HP/ 30 kW 50 Footed 200L
54 0224SDMW7FS-P IEC IE3 4 400 30 HP/ 22 kW 50 Footed 180L
55 0184SDMW7FS-P IEC IE3 4 400 25 HP/ 18.5 kW 50 Footed 180M
56 0154SDMW7FS-PL IEC IE3 4 400 20 HP/ 15 kW 50 Footed 160L
57 0114SDMW7FS-PL IEC IE3 4 400 15 HP/ 11 kW 50 Footed 160M
58 Y754SDMV7FS-PL IEC IE3 4 230/400 10 HP/ 7.5 kW 50 Footed 132M
59 Y554SDMV7FS-PL IEC IE3 4 230/400 7.5 HP/ 5.5 kW 50 Footed 132S
60 0044SDMV7FS-PL IEC IE3 4 230/400 5.5 HP/ 4 kW 50 Footed 112M
61 0186SDMW7GS-P IEC IE3 6 400 25 HP/ 18.5 kW 50 D-Flange Footed 200L
62 0306SDMW7GS-P IEC IE3 6 400 40 HP/ 30 kW 50 D-Flange Footed 225S
63 0226SDMW7GS-P IEC IE3 6 400 30 HP/ 22 kW 50 D-Flange Footed 200L
64 0156SDMW7GS-P IEC IE3 6 400 20 HP/ 15 kW 50 D-Flange Footed 180L
65 0116SDMW7GS-PL IEC IE3 6 400 15 HP/ 11 kW 50 D-Flange Footed 160L
66 Y756SDMW7GS-PL IEC IE3 6 400 10 HP/ 7.5 kW 50 D-Flange Footed 160M
67 Y116SDMV7FS-PL IEC IE3 6 230/400 1.5 HP/ 1.1 kW 50 Footed 90L
68 Y756SDMW7FS-PL IEC IE3 6 400 10 HP/ 7.5 kW 50 Footed 160M
69 Y556SDMV7FS-PL IEC IE3 6 230/400 7.5 HP/ 5.5 kW 50 Footed 132M
70 0046SDMV7FS-PL IEC IE3 6 230/400 5.5 HP/ 4 kW 50 Footed 132M
71 0036SDMV7FS-PL IEC IE3 6 230/400 4 HP/ 3 kW 50 Footed 132S
72 Y226SDMV7FS-PL IEC IE3 6 230/400 3 HP/ 2.2 kW 50 Footed 112M
73 Y156SDMV7FS-PL IEC IE3 6 230/400 2 HP/ 1.5 kW 50 Footed 100L
74 Y556SDMV7GS-PL IEC IE3 6 230/400 7.5 HP/ 5.5 kW 50 D-Flange Footed 132M
75 X756SDMV7FS-PL IEC IE3 6 230/400 1 HP/ 0.75 kW 50 Footed 90L
76 0116SDMW7FS-PL IEC IE3 6 400 15 HP/ 11 kW 50 Footed 160L
77 0156SDMW7FS-P IEC IE3 6 400 20 HP/ 15 kW 50 Footed 180L
78 0186SDMW7FS-P IEC IE3 6 400 25 HP/ 18.5 kW 50 Footed 200L
79 0046SDMV7GS-PL IEC IE3 6 230/400 5.5 HP/ 4 kW 50 D-Flange Footed 132M
80 0036SDMV7GS-PL IEC IE3 6 230/400 4 HP/ 3 kW 50 D-Flange Footed 132S
81 Y226SDMV7GS-PL IEC IE3 6 230/400 3 HP/ 2.2 kW 50 D-Flange Footed 112M
82 Y156SDMV7GS-PL IEC IE3 6 230/400 2 HP/ 1.5 kW 50 D-Flange Footed 100L
83 Y116SDMV7GS-PL IEC IE3 6 230/400 1.5 HP/ 1.1 kW 50 D-Flange Footed 90L
84 X756SDMV7GS-PL IEC IE3 6 230/400 1 HP/ 0.75 kW 50 D-Flange Footed 90L
85 0306SDMW7FS-P IEC IE3 6 400 40 HP/ 30 kW 50 Footed 225S
86 0226SDMW7FS-P IEC IE3 6 400 30 HP/ 22 kW 50 Footed 200L
